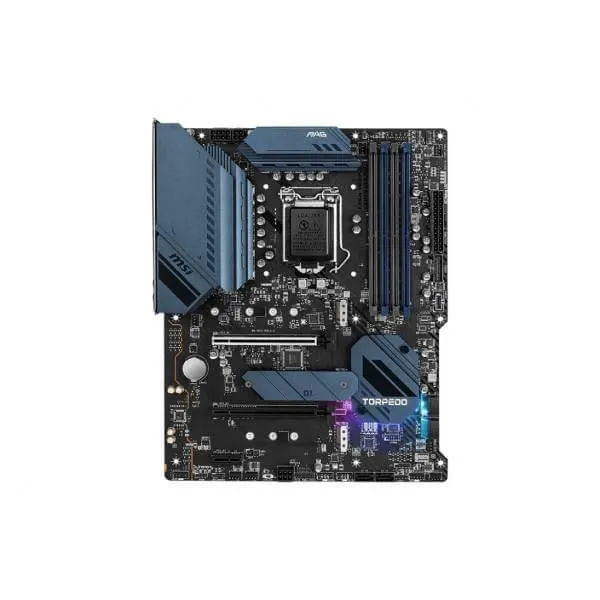

MSI MAG B560 Torpedo Motherboard
MSI MAG B560 Torpedo Motherboard
MSI MAG B560 Torpedo Motherboard
MSI MAG B560 Torpedo Motherboard
MSI MAG B560 Torpedo Motherboard
MSI MAG B560 Torpedo Motherboard
MSI MAG B560 Torpedo Motherboard
MSI MAG B560 Torpedo Motherboard
MSI MAG B560 Torpedo Motherboard
MSI MAG B560 Torpedo Motherboard
(2 ratings)

MSI MAG B560 Torpedo Motherboard

₹ 17999.00 ₹ 17999.00 0
Availability:
Available on Request
Check delivery options

About the product:

MSI MAG Series B560 Based ATX Motherboard, Featuring 11th Gen Intel Rocket Lake Support, DDR4 5066 Mhz Memory Support, Dual LAN Networking Capability With 2.5 Gigabit Dragon Lan and Intel 1 Gigabit Ethernet.

Features

MAG B560 TORPEDO

  • Supports 10th Gen Intel® Core™, 11th Gen Intel® Core™, Pentium® Gold and Celeron® processors for LGA 1200 socket
  • Supports DDR4 Memory, up to 5066(OC) MHz
  • Lightning M.2: Running at PCIe Gen4 x4 maximizes performance for NVMe based SSDs
  • Premium Thermal Solution: Extended Heatsink Design and M.2 Shield Frozr are built for high performance system and non-stop works
  • Latest Network Solution: Onboard 2.5G LAN plus Gigabit LAN with LAN Manager deliver the best online experience without lag
  • Lightning USB 20G: Powered by USB 3.2 Gen2x2 controller, offering never before seen USB speeds up to 20Gb/s with USB Type-C
  • Audio Boost: Reward your ears with studio grade sound quality
  • Multi-GPU: With Steel armor PCIe slots. Supports 2-Way AMD Crossfire™

Specifications

PROCESSOR

Supports 10th Gen Intel® Core™ Processors, 11th Gen Intel® Core™ Processors, Pentium® Gold and Celeron® Processors

Processor socket LGA1200
CHIPSET Intel® B560 Chipset
MEMORY
  • 4x DDR4 memory slots, support up to 128GB
    • Supports 1R 2133/ 2666/ 2933 MHz for 10th Gen Intel® CPU (by JEDEC & POR)
    • Supports 1R 2133/ 2666/ 2933/ 3200 MHz for 11th Gen Intel® CPU (by JEDEC & POR)
    • Max overclocking frequency:
      • 1DPC 1R Max speed up to 5066 MHz
      • 1DPC 2R Max speed up to 4600+ MHz
      • 2DPC 1R Max speed up to 4266+ MHz
      • 2DPC 2R Max speed up to 4000+ MHz
  • Supports Dual-Channel mode
  • Supports non-ECC, un-buffered memory
  • Supports Intel® Extreme Memory Profile (XMP)
EXPANSION SLOTS
  • 2x PCIe x16 slots
    • PCI_E1 (from CPU)
      • Support up to PCIe 4.0 for 11th Gen Intel® CPU
      • Support up to PCIe 3.0 for 10th Gen Intel® CPU
    • PCI_E2 (from B560 chipset)
      • Support up to PCIe 3.0 x4
  • 1x PCIe 3.0 x1 slot (from B560 chipset)
ONBOARD GRAPHICS
  • 1x HDMI 2.0b with HDR port, supports a maximum resolution of 4K 60Hz
  • 1x DisplayPort 1.4 port, supports a maximum resolution of 4K 60Hz
MULTI-GPU Supports 2-Way AMD® CrossFire™ Technology
STORAGE
  • 6x SATA 6Gb/s ports (from B560 chipset)
  • 3x M.2 slots (Key M)
    • M2_1 slot (from CPU)
      • Available only on 11th Gen Intel® CPU
      • Supports up to PCIe 4.0 x4
      • Supports 2242/ 2260/ 2280/ 22110 storage devices
    • M2_2 slot (from B560 chipset)
      • Supports up to PCIe 3.0 x4
      • Supports SATA up to 6Gb/s
      • Supports 2242/ 2260/ 2280 storage devices
    • M2_3 slot (from B560 chipset)
      • Supports up to PCIe 3.0 x4
      • Supports 2242/ 2260/ 2280 storage devices
      • Intel® Optane™ Memory Ready
      • Supports Intel® Smart Response Technology for Intel Core™ processor
USB

Intel® B560 Chipset

  • 1x USB3.2 Gen 2x2 20Gbps port (Type-C port on the back panel)
  • 1x USB 3.2 Gen 2 10Gbps port (1 Type-C available through the internal connector)
  • 6x USB 3.2 Gen 1 5Gbps ports (4 Type-A ports on the back panel, 2 Type-A ports available through the internal connector)
  • 4x USB 2.0 ports on the back panelG

Hub-GL850G

  • 4x USB 2.0 ports available through the internal connectors
AUDIO

Realtek® ALC897 Codec

  • 7.1-Channel High Definition Audio
  • Supports S/PDIF output
LAN
  • 1x Realtek® RTL8125B 2.5Gbps LAN controller
  • 1x Intel® I219V 1Gbps LAN controller
INTERNAL CONNECTORS
  • x 24-pin ATX main power connector
  • 1x 8-pin ATX 12V power connector
  • 1x 4-pin ATX 12V power connector
  • 6x SATA 6Gb/s connectors
  • 3x M.2 slots (M-Key)
  • 1x USB 3.2 Gen 2 10Gbps Type-C port
  • 1x USB 3.2 Gen 1 5Gbps connector (supports additional 2 USB 3.2 Gen 1 5Gbps ports)
  • 2x USB 2.0 connectors (supports additional 4 USB 2.0 ports)
  • 1x 4-pin CPU fan connector
  • 1x 4-pin water-pump fan connector
  • 5x 4-pin system fan connectors
  • 1x Front panel audio connector
  • 2x System panel connectors
  • 1x Chassis Intrusion connector
  • 1x Clear CMOS jumper
  • 1x TPM module connector
  • 1x TBT connector (supports RTD3)
  • 1x Tuning Controller connect
LED FEATURE
  • 1x EZ LED Control switch
  • 2x 4-pin RGB LED connectors
  • 2x 3-pin RAINBOW LED connectors
  • 4x EZ Debug LED
BACK PANEL PORTS
  • USB 2.0
  • DisplayPort
  • 2.5G LAN Port
  • Gigabit LAN Port
  • HD Audio Connectors
  • HDMI
  • USB 3.2 Gen 1 5Gbps Type-A
  • USB 3.2 Gen 2x2 20Gbps Type-C
  • Optical S/PDIF OUT
DIMENSIONS
  • ATX Form Factor
  • 12 in. x 9.6 in. (30.5 cm x 24.4 cm
MOUNTING 9 mounting holes
OPERATING SYSTEM Support for Windows® 10 64-bit
Warranty 3 Years
Note *** Features, Price, Specifications are subject to change without notice.
